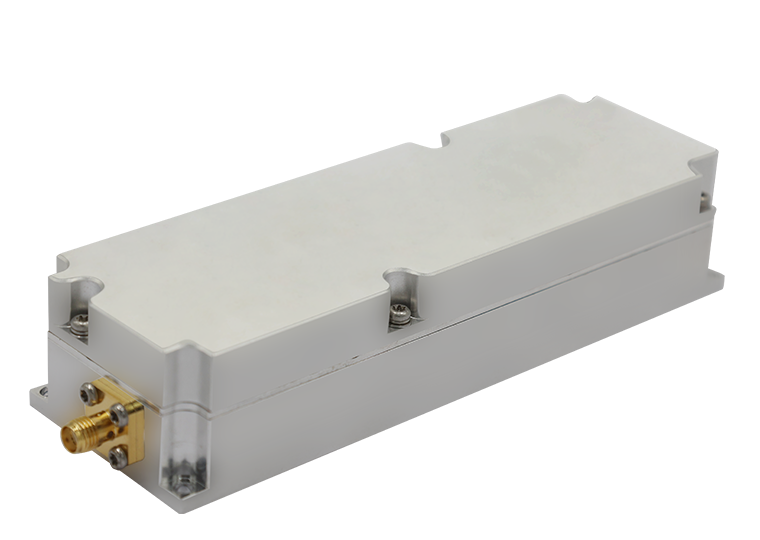

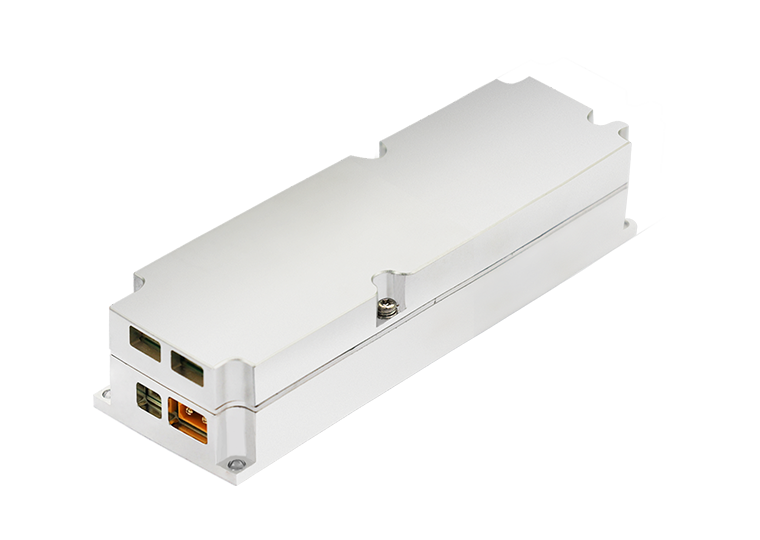

M1001 SDR Counter-UAV Digital Module
The SDR Counter-UAV Digital Source Module is built on Software Defined Radio (SDR) architecture. It comprises two key components: a digital source and a power amplifier unit. The digital source operates within a wide frequency range of 20MHz to 6000MHz and offers flexible configuration within a 200MHz bandwidth, ensuring precise frequency characteristics. Designed for superior performance, it automatically generates digital modulation interference codes tailored to various drone types and supports common protocols such as ELRS, Crossfire, Flysky, Ocusync, Lightbridge, and Skyloas. Its integrated modular design is compact and small, featuring flexible interfaces that allow for seamless integration into diverse systems.
Category:
Key words:
SDR Counter-UAV Digital Module
Signal uav jammer module
Sdr c-uav digital module
UAV FPV detector system
Please submit a message first
The SDR Counter-UAV Digital Source Module is built on Software Defined Radio (SDR) architecture. It comprises two key components: a digital source and a power amplifier unit. The digital source operates within a wide frequency range of 20MHz to 6000MHz and offers flexible configuration within a 200MHz bandwidth, ensuring precise frequency characteristics.
Designed for superior performance, it automatically generates digital modulation interference codes tailored to various drone types and supports common protocols such as ELRS, Crossfire, Flysky, Ocusync, Lightbridge, and Skyloas. Its integrated modular design is compact and small, featuring flexible interfaces that allow for seamless integration into diverse systems.
| Operating Frequency | 20MHz~6GHz, full frequency band can be customized |
| Mainstream Frequency Band | 433MHz, 868MHz, 915MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| Operating Voltage | DC 28-32V |
| Operating Current | 4.5A Max |
| Output Power | 50W Max (47dBm) |
| Output RF Interface | SMA/50Ω |
| Control Interface | IO enables,RS-422 communication |
| Weight | ≤175g |
| Working Temperature | -30℃~+55℃ |
Related Solution
SDR Counter-UAV Module Solutions
Drone Defense Solutions for Singles Soldiers
Drone Defense Solutions for Squads
Drone Defense Solutions for Armoured Vehicles
Production Display
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your inquiry and we will come back to you as soon as possible.
FAQ
Why AWP?
AWP is one of China's largest C-UAS solution providers. As a high-tech company, we boast a top-tier R&D team, state-of-the-art manufacturing and testing facilities, and customer-focused service.
Why SDR?
Based on SDR architecture, algorithm upgrades are performed via software, eliminating the need for hardware replacement, This economical approach ensures long-term protection for your investment.
Why AWP SDR?
AWP's SDR employs a digital modulation interference source, effectively disrupting various types of UAVs, with exceptional performance against FPV drones. AWP is pioneering the era of algorithm-based counter-UAV systems.
Would your company be capable of undertaking OEM and ODM projects?
Yes. Our highly skilled R&D and manufacturing team brings extensive expertise and experience, enabling us to expertly manage customized OEM and ODM projects.
