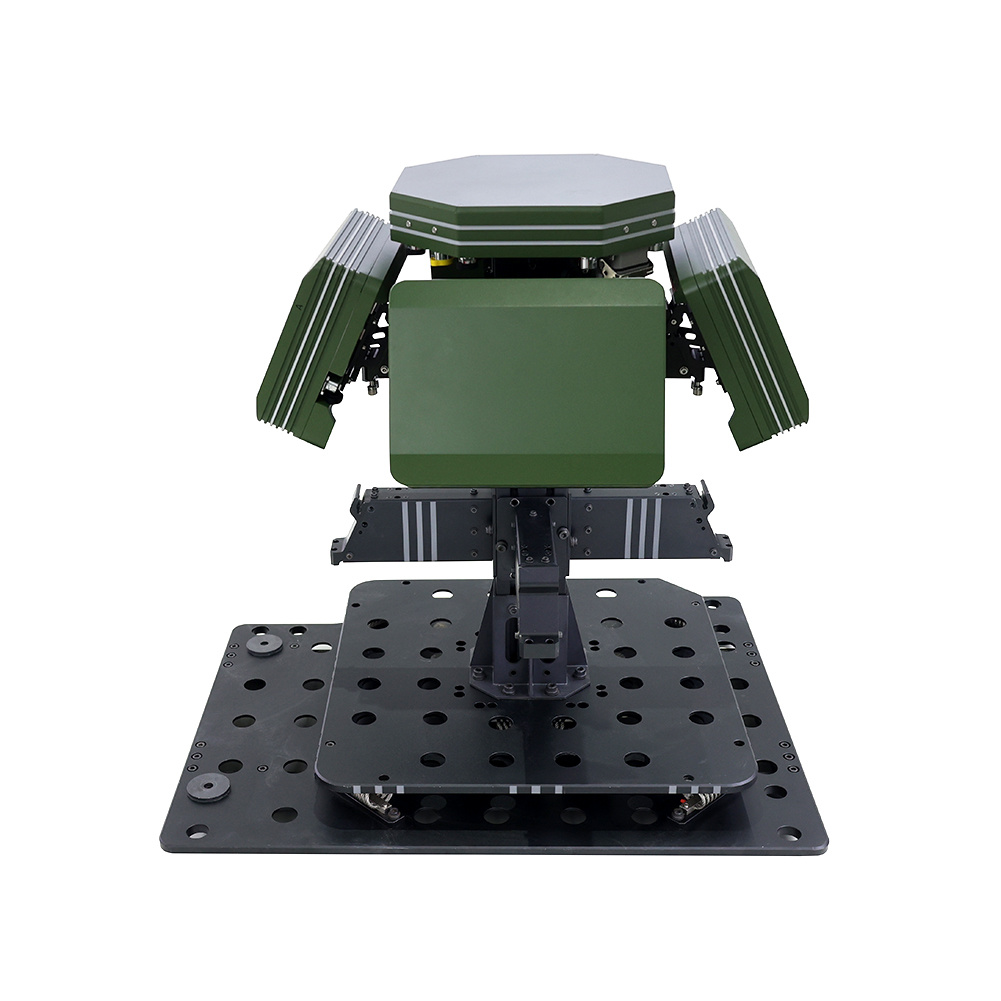

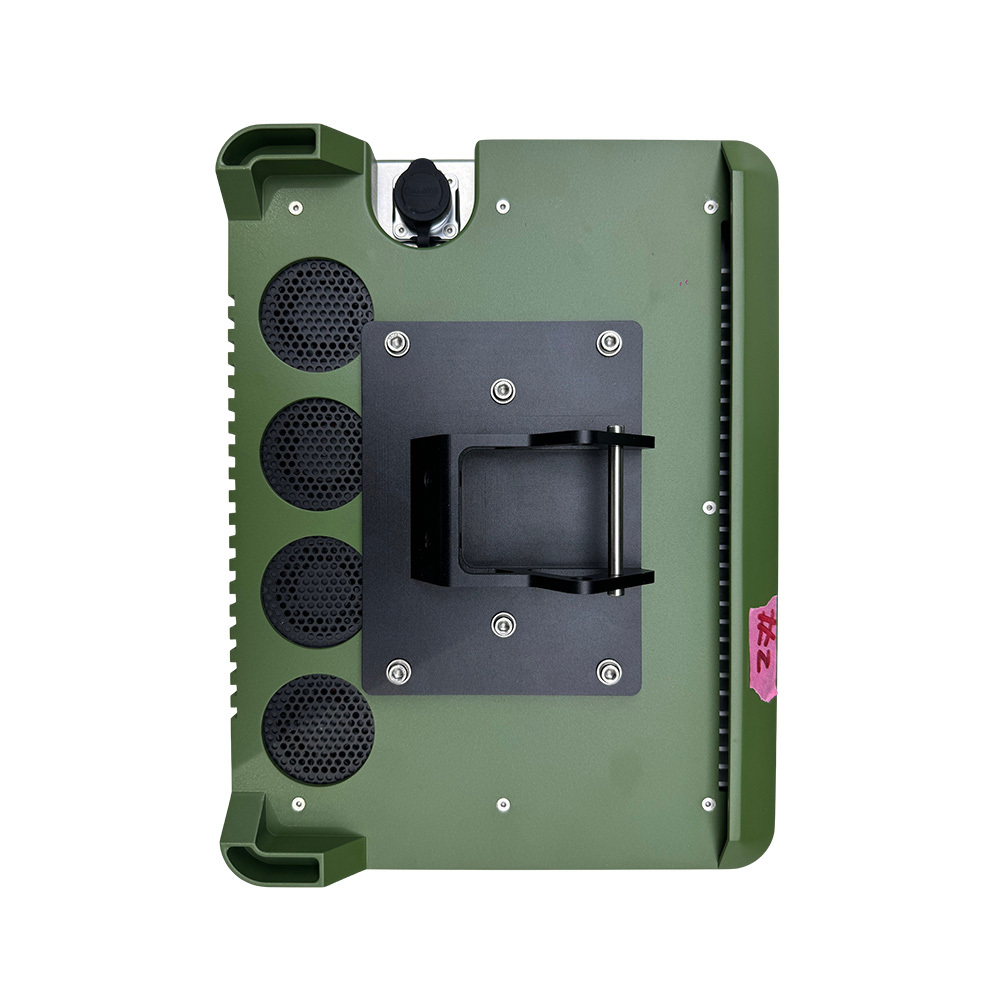

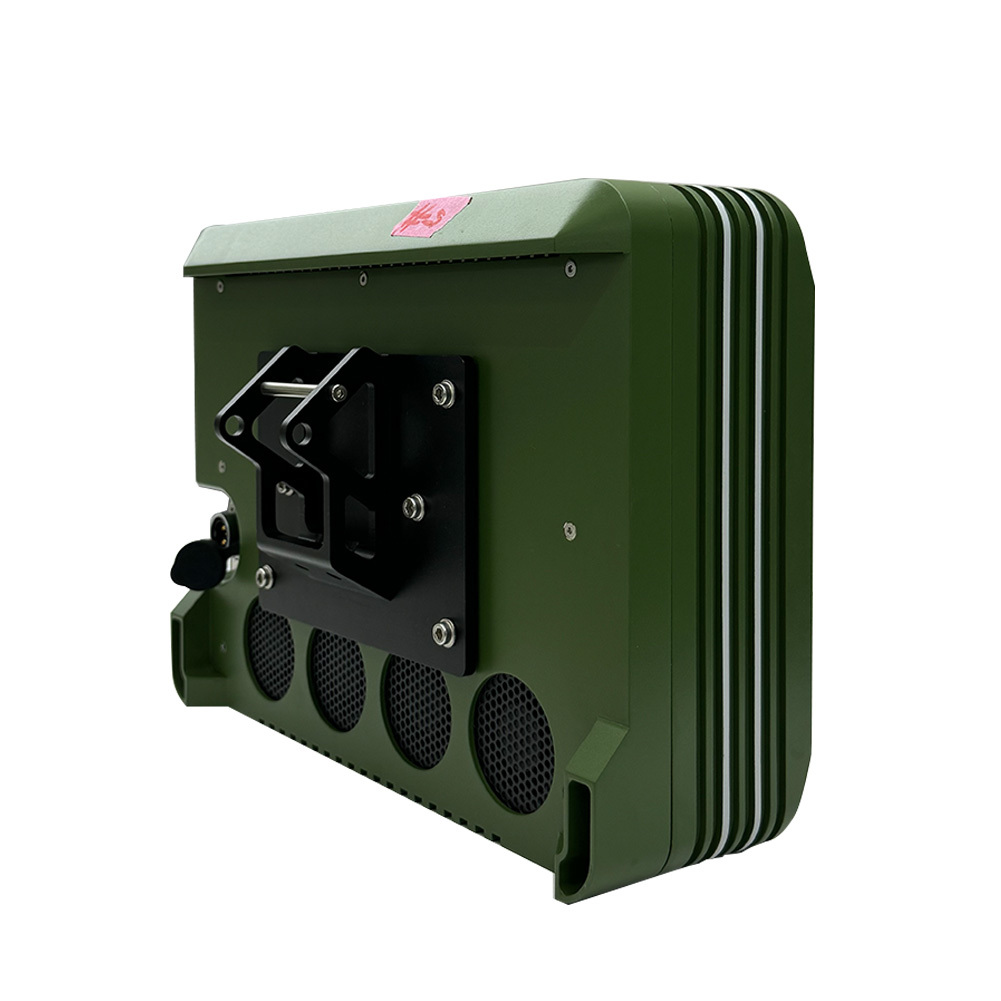

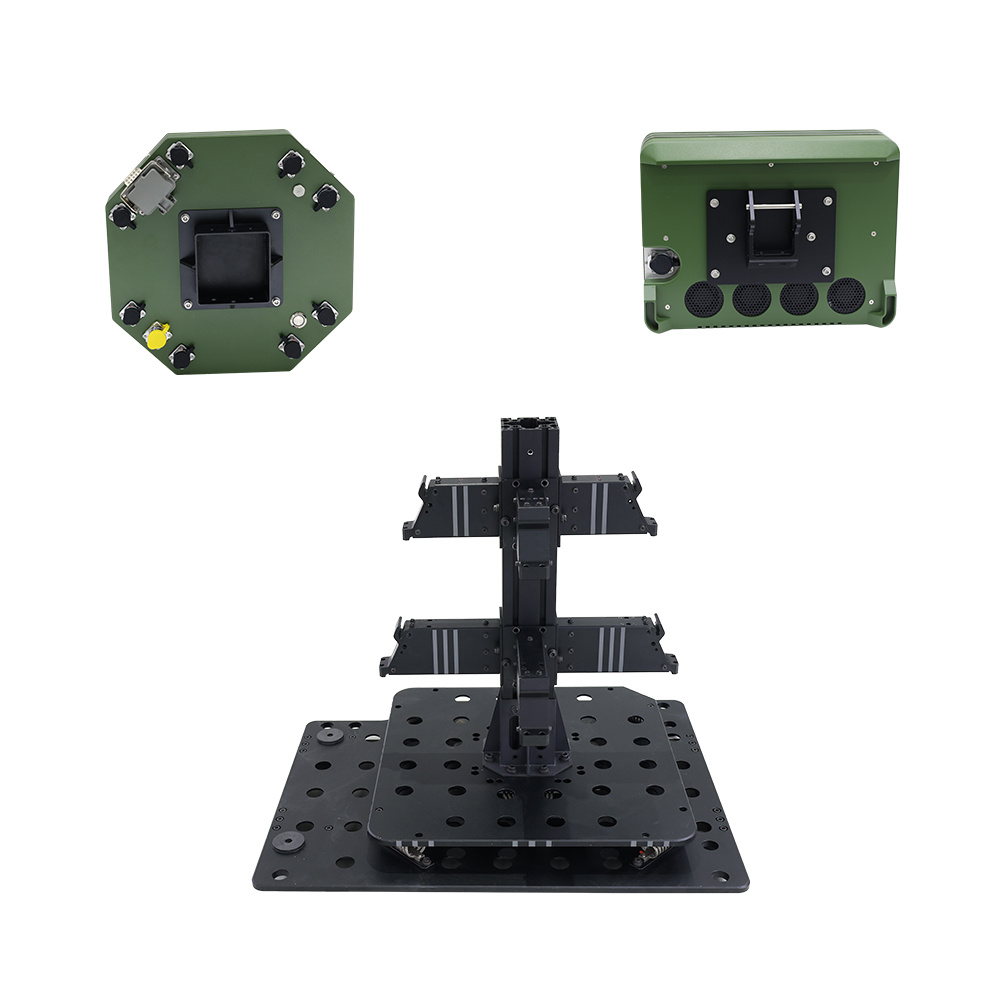

AT-625 Vehicle-Mounted Counter-UAV/FPV Equipment
Based on SDR jamming technology, the equipment can effectively block the remote control, image transmission, and navigation signals of FPV drones and conventional UAVs, building a safety defense line for key armored equipment. The equipment adopts a unit module design, including counter-FPV units, counter-UAV units and a control unit, which can achieve one key switch. Military-level design that can meet various combat scenarios, defend against FPV attacks on armored equipment, and protect the safety of important assets.
Category:
Key words:
Vehicle Mounted C-UAV Equipment
Vehicle-mounted Four-sided Formation Counter-UAV Equipment
UAV FPV detector system
Fixed C-UAV Equipment
Please submit a message first
| Jamming Mechanism | SDR technology |
| Jamming Frequency Band (Counter-FPV Unit) | 800MHz/900MHz/2.4GHz/5.8GHz |
| Jamming Frequency Band (Counter-UAV Unit) | 1.2GHz/1.5GHz/2.4GHz/5.2GHz/5.8GHz |
| Jamming Signal Type | Image transmission signal,remote control signal, and navigation signal of UAVs |
| Defense Direction | Single unit:Horizontal>90°,tilt>45° Four-sided formation torealize 360°coverage |
| Jamming Distance | >1000m (iamming-to-communication ratio is 2:1),DJI Mini4 Pro >500m (jamming-to-communication ratio is 1:1), DIY FPV(TBS/ELRS protocol) |
| Total Transmission Power | ≤120W per unit (configurable) |
| Size | 890*700*848mm (with bracket) |
| Weight | Counter-FPV four-sided formation:154kg Counter FPV+UAV four-sided formation:171 kg |
| Power Supply | DC 24V AC 220V to 24V(with external adapter) |
| IP Rate | IP66 |
| Working Conditions | -40℃~+55℃/Humidity not more than 93%, no condensation water |
