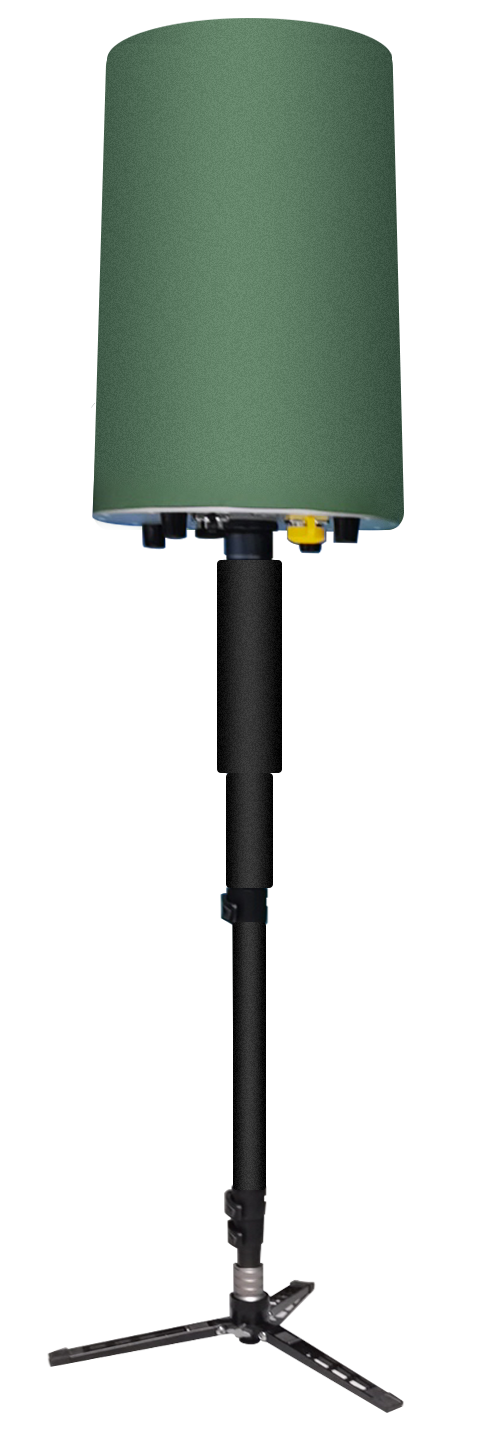

AT-626 UAV Detection and Warning Equipment
This AoA-based system achieves 1km-radius drone detection, direction-finding ( ±3o accuracy), and positioning with just 2 networked units. Featuring 360o omnidirectional monitoring, it effectively warns against all drone threats including DIY FPV drones. The compact design enables flexible deployment for both temporary and permanent airspace security in tactical/base defense scenarios.
Category:
Key words:
Fixed Counter UAV Detection and Warning Equipment
Fixed C-UAV Equipment
Please submit a message first
AT-626 detects and warns of incoming UAVs using radar and RF technology for early threat response.
| Detection frequency band | 100MHz~6000MHz |
| Detection bands | 1.2GHz / 1.4GHz / 2.4GHz / 5.1~6.0GHz |
| Detection models | DIY FPV drones ( ELRS/TBS Crossfire and other protocols ), conventional drones ( DJI / Autel, etc. ), WiFi drones, etc. |
| Detection range | ≥ 5km ( open environment ), ≥ 2km ( urban environment ) |
| Direction-finding accuracy | ± 5° |
| Installation method | Installation of retractable bracket |
| Communication interface | RJ-45 |
| Power supply | Powered by PoE / DC 12-48V |
| Size | Φ260mm * H300mm |
| Weight | < 4.5kg |
| Protection level | IP65 |
| Operation temperature | -30°C 〜+ 55°C |
| Storage Temperature | -40°C 〜+ 70°C |
| Corollary equipment | PoE switch |
Related Solution
SDR Counter-UAV Module Solutions
Drone Defense Solutions for Singles Soldiers
Drone Defense Solutions for Squads
Drone Defense Solutions for Armoured Vehicles

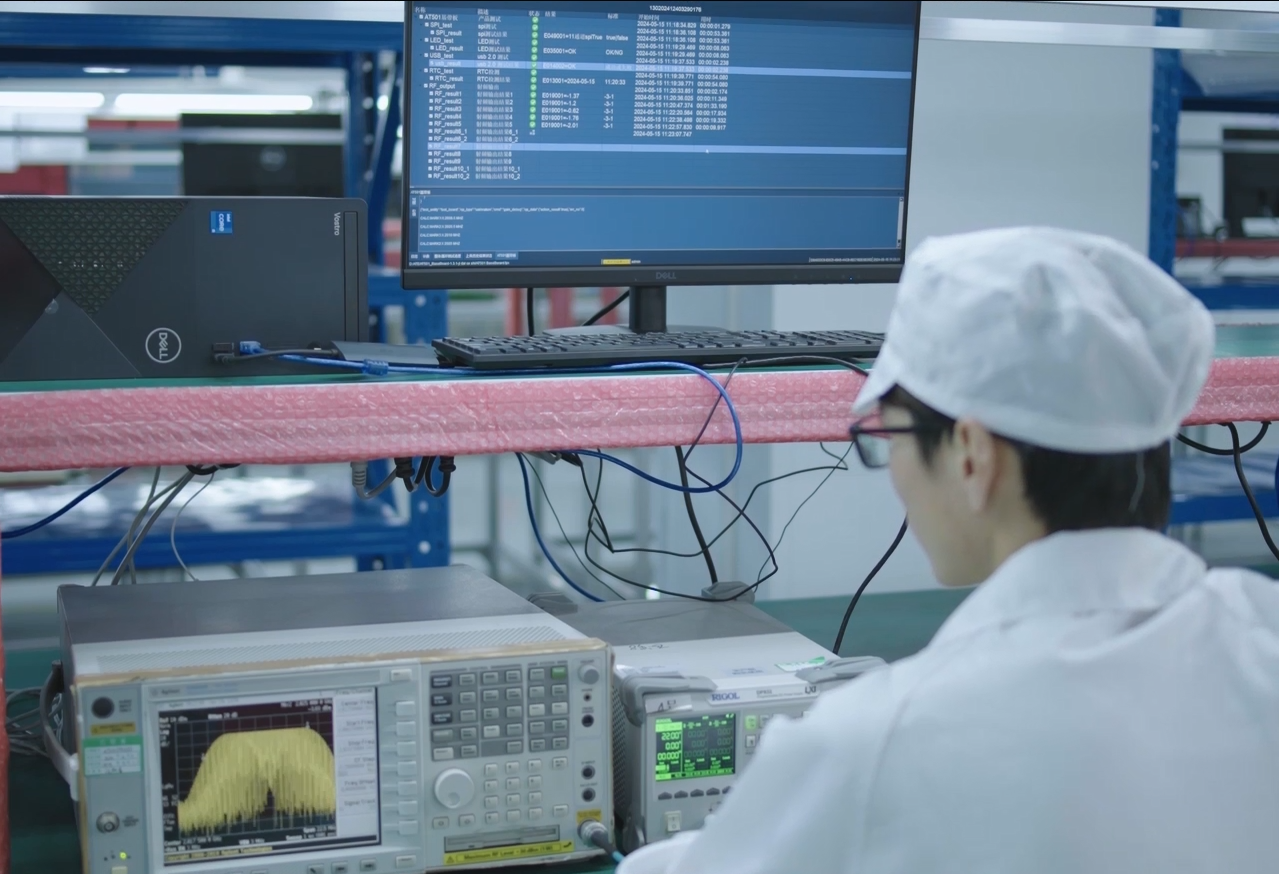

Production Display
