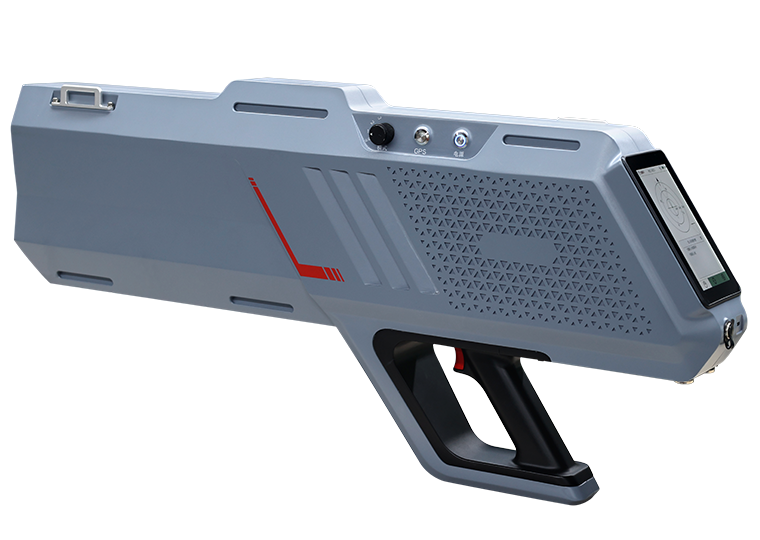

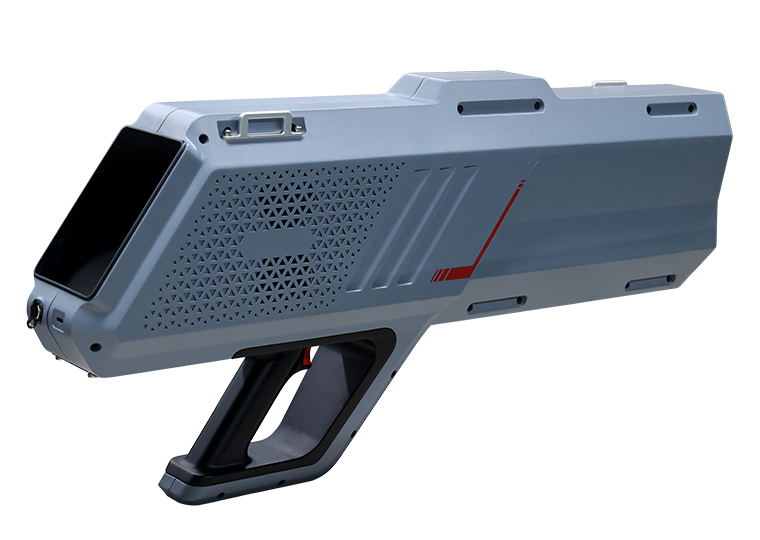

AT-605 Portable Counter-UAV Equipment
Detection and countermeasure all-in-one design, without any extra parts, flexible and convenient for individual carrying. Support 3km omni-directional detection and 2km directional interference for all types of common UAV in surrounding airspace. Equipped with SDR technology and visual auxiliary aiming system, it can detect, locate and identify UAV at 360°, and make comprehensive suppression, force the UAV to hover, return or descend.
Category:
Key words:
Portable Counter-UAV Equipment
Signal uav jammer module
Please submit a message first
The design of the detection and countermeasure system is all-in-one, with no need for additional parts, making it flexible and convenient for individuals to carry. It has the capability to support omni-directional detection up to 3km and directional interference up to 2km for all types of common UAVs in the surrounding airspace.
This system is equipped with SDR technology and a visual auxiliary aiming system, allowing it to detect, locate, and identify UAVs at 360°. In addition, it can perform comprehensive suppression measures, forcing the UAV to hover, return, or descend. The integration of these features makes this system highly effective in countering unauthorized UAV activities and ensuring airspace security.
| Detection Unit | Detection Frequency Band | 2.4GHz, 5.8GHz, 900MHz (optional), 1.4GHz (optional) |
| Detection Signal Types | UAV data transmission signal, UAV remote control signal, WiFi signal | |
| Detection Distance | ≥3km (open environment), 0.5km~1km (urban environment) | |
| Direction-Finding Accuracy | 10° (open environment) | |
| Interference Unit | Interference Frequency Band | 900MHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.8GHz, 5.2GHz (optional), 5G mobile communication frequency band (optional) |
| Defense Direction | ≥30°Directional antenna with 30° transmission angle | |
| Interference Distance | ＞2km, interference/communication ratio>10:1 | |
| Interference Response Time | <4s | |
| Basic Information | Information Display |
5-inch display: self-check status, drone model, interference band, date time, battery level, interference duration, etc. |
| Battery Life | ≥60 minutes (full-frequency transmission on) | |
| Size | 700mm*322mm*100mm | |
| Weight | ≤4.5kg | |
| Protection Level | IP54 | |
| Working Temperature | -30℃~+45℃ | |
| Storage Temperature | -40℃~+70℃ |
Related Solution
Low-altitude Defense Solution
Petrochemical Industry Solution
Production Display
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your inquiry and we will come back to you as soon as possible.
FAQ
Why AWP?
AWP is one of China's largest C-UAS solution providers. As a high-tech company, we boast a top-tier R&D team, state-of-the-art manufacturing and testing facilities, and customer-focused service.
Why SDR?
Based on SDR architecture, algorithm upgrades are performed via software, eliminating the need for hardware replacement, This economical approach ensures long-term protection for your investment.
Why AWP SDR?
AWP's SDR employs a digital modulation interference source, effectively disrupting various types of UAVs, with exceptional performance against FPV drones. AWP is pioneering the era of algorithm-based counter-UAV systems.
Would your company be capable of undertaking OEM and ODM projects?
Yes. Our highly skilled R&D and manufacturing team brings extensive expertise and experience, enabling us to expertly manage customized OEM and ODM projects.
