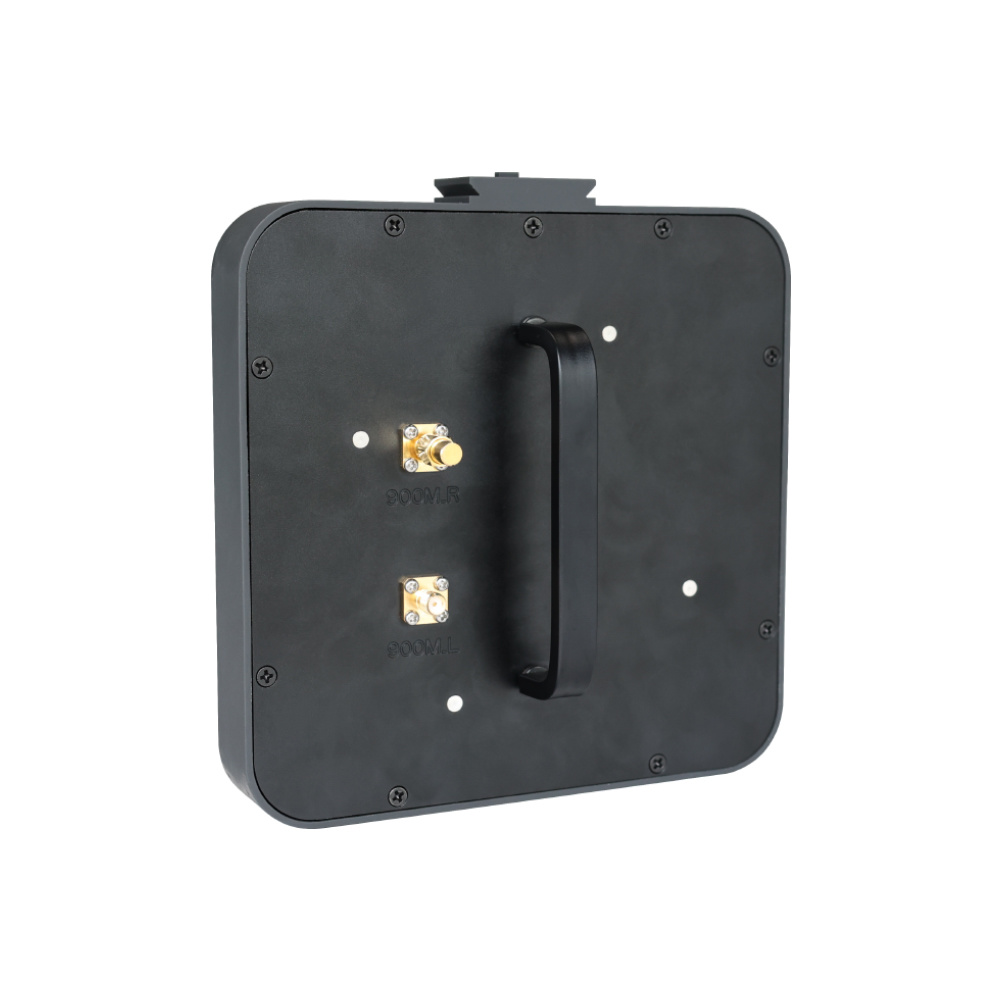

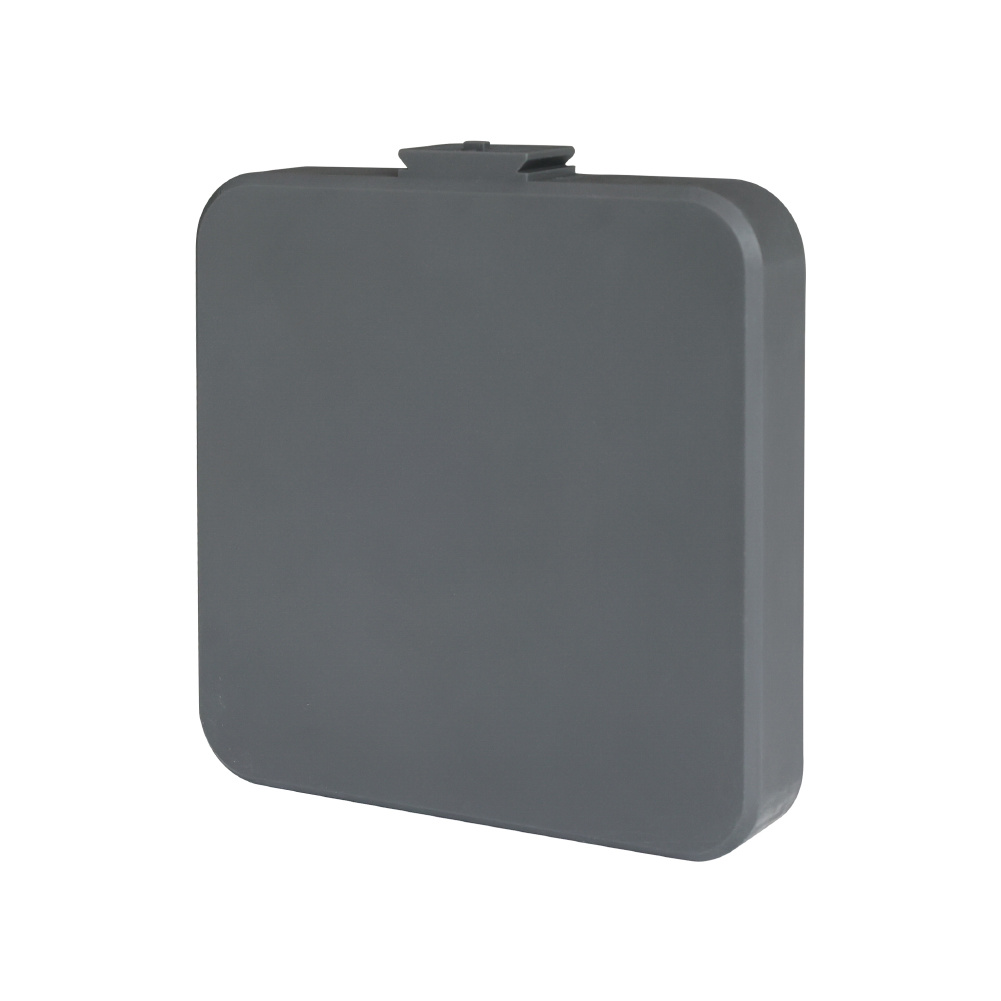

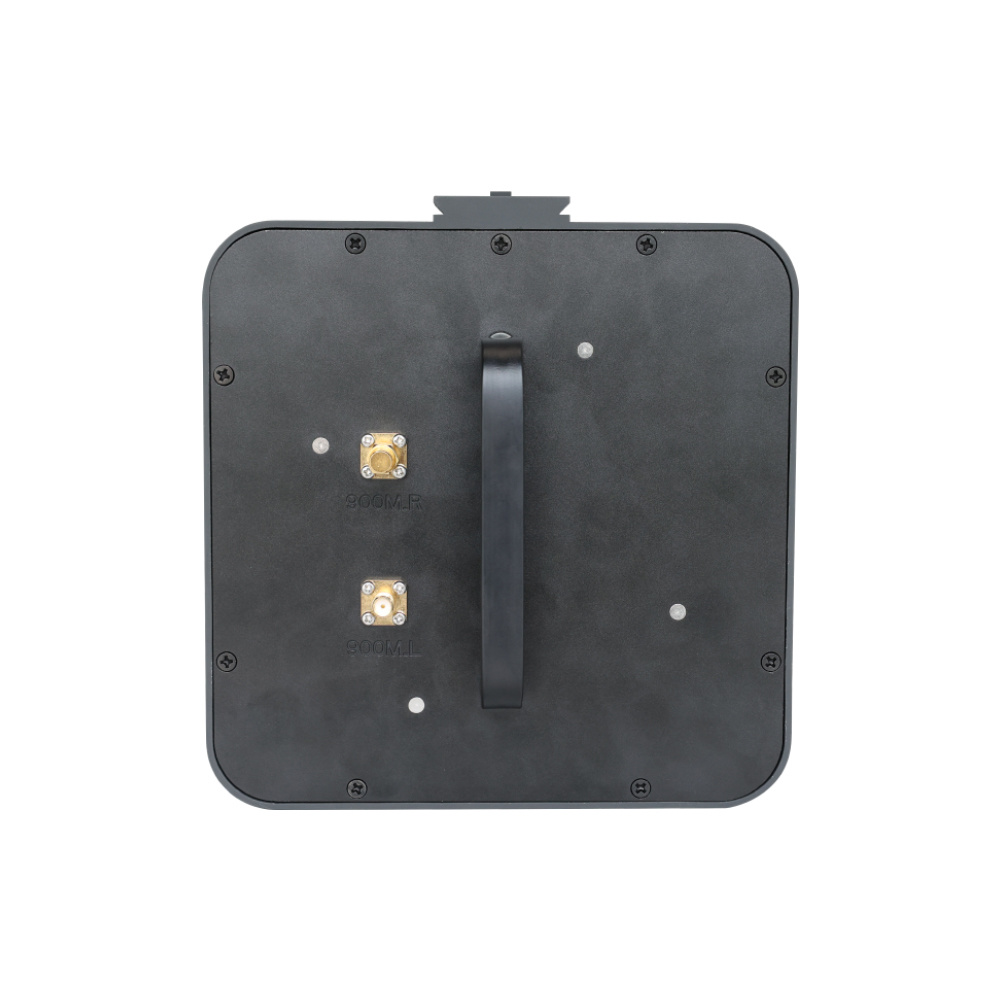

Directional Anti-drone Antenna
The Antenna is only used for our SDR module testing, users need to design their own antenna integrated according to their own product design. The frequency range of the antenna output should be the same as the frequency range of the module, and the non-correspondence of the frequency will lead to the damage of the module.
Category:
Key words:
Please submit a message first
The Antenna is an essential component for testing our SDR module. However, users must be aware that they are required to create their own antenna design to integrate with their specific product design. It is crucial that the frequency range of the antenna output is aligned with the frequency range of the module.
It is crucial to establish and maintain a strong correspondence between the antenna design and the SDR module to avoid any potential risks of irreparable damage. Neglecting this correspondence could lead to severe consequences, jeopardizing the functionality and longevity of the module. Users must prioritize a thorough evaluation and implementation of the suitable antenna design to guarantee optimal performance and durability of the SDR module in the long run.
Specifications
Antenna Model | Band Width | VSWR | Gain | Beam | Polarization mode | Size(L xH xW) mm |
ANT-868-D ANT-900-D ANT-915-D | 860-930 MHz | ＜2 | 5dBi | 80° | Circular polarization | |
ANT-1200-D | 1160-1300 MHz | ＜2 | 3.5dBi | 90° | Linear polarization | 160x160x28 |
ANT-1400-D | 1380-1450 MHz | ＜2 | 4 dBi | 90° | Linear polarization | 160x160x28 |
ANT-1600-D | 1550-1620 MHz | ＜2 | 4.5dBi | 90° | Linear polarization | 160x160x28 |
ANT-2400-D | 2400-2500 MHz | ＜2 | 10 dBi | 50° | Circular polarization | 160x160x28 |
ANT-5200-D | 5150-5350 MHz | ＜2 | 12 dBi | 35° | Linear polarization | 160x160x28 |
ANT-5800-D | 5725-5875 MHz | ＜2 | 13 dBi | 28° | Linear polarization | 160x160x28 |
