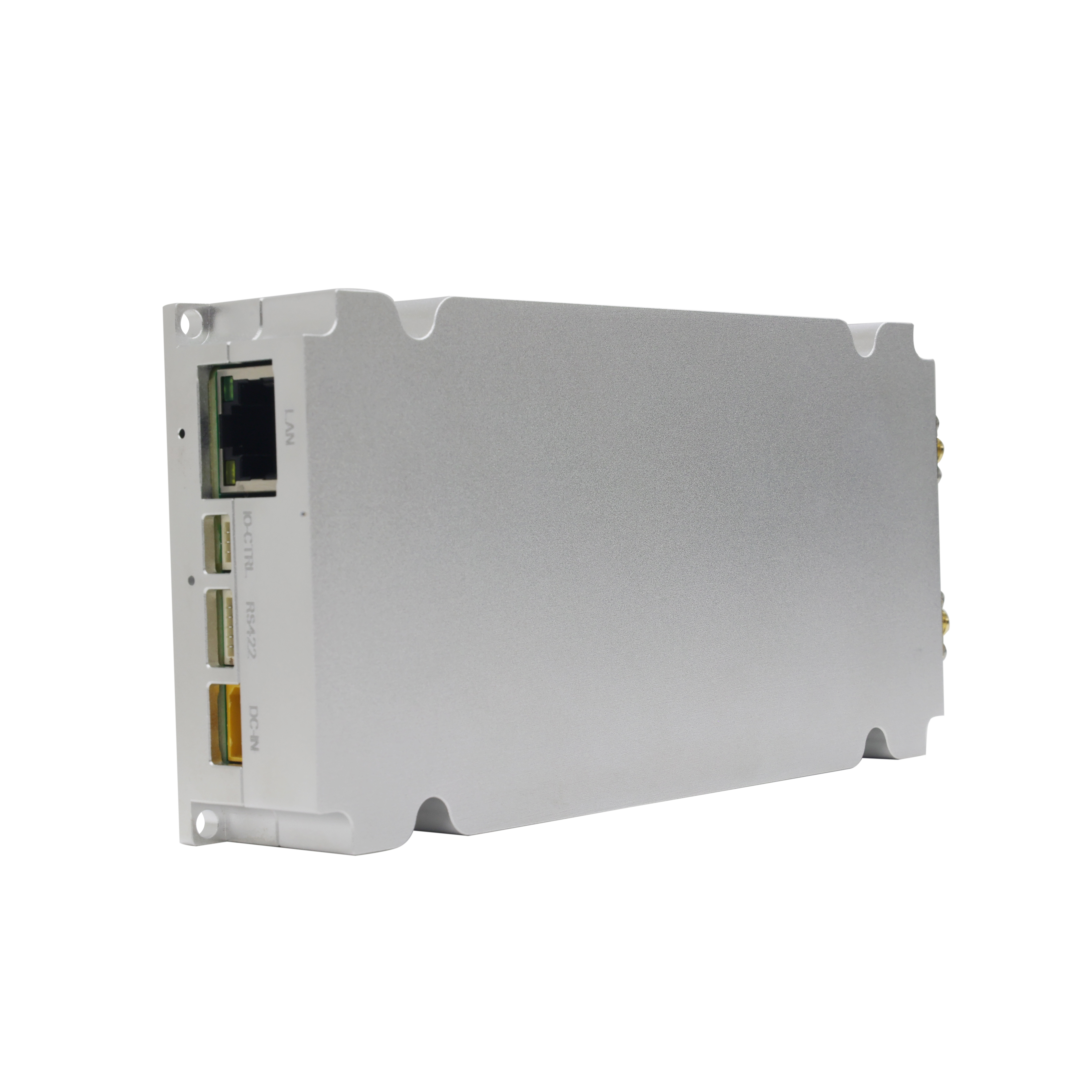

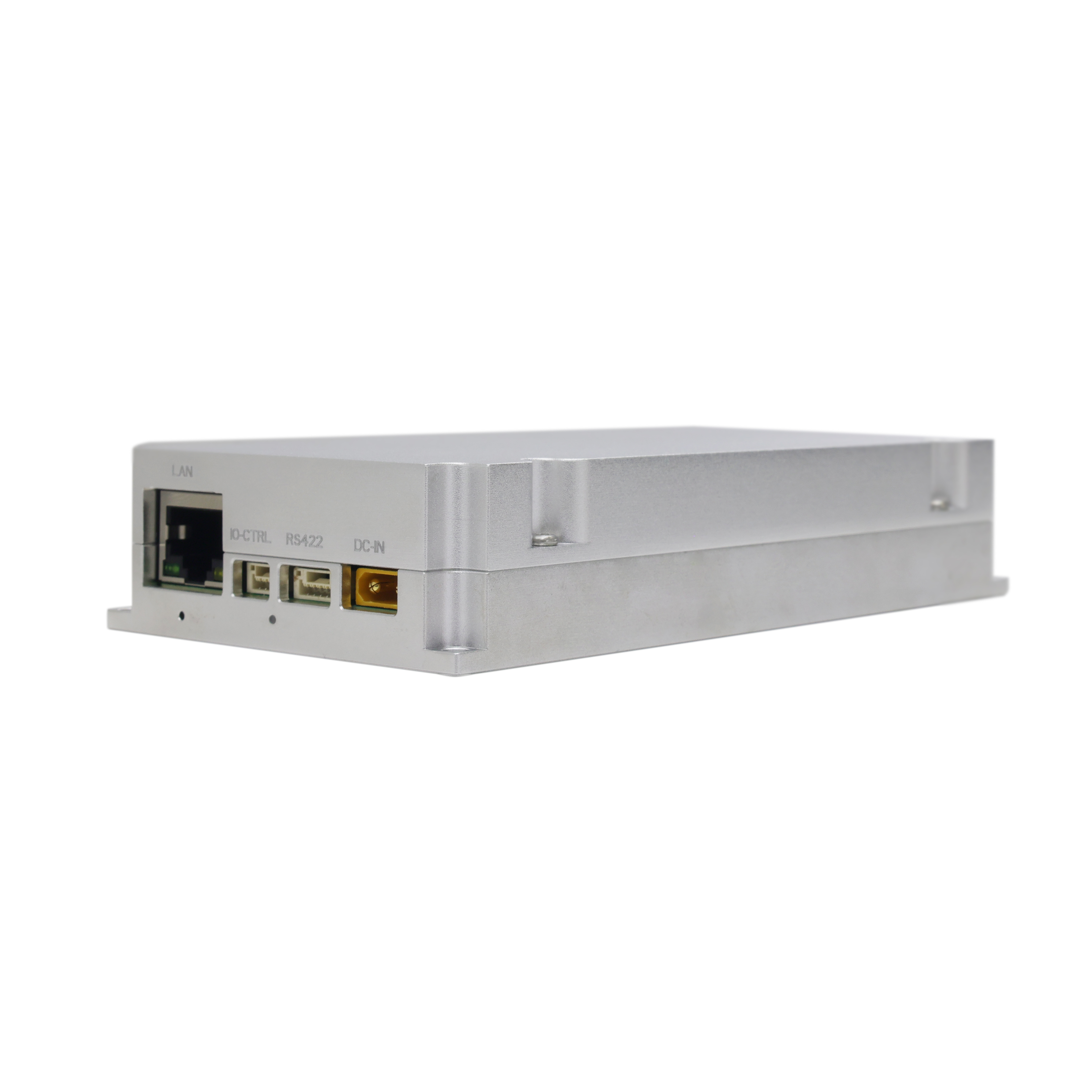

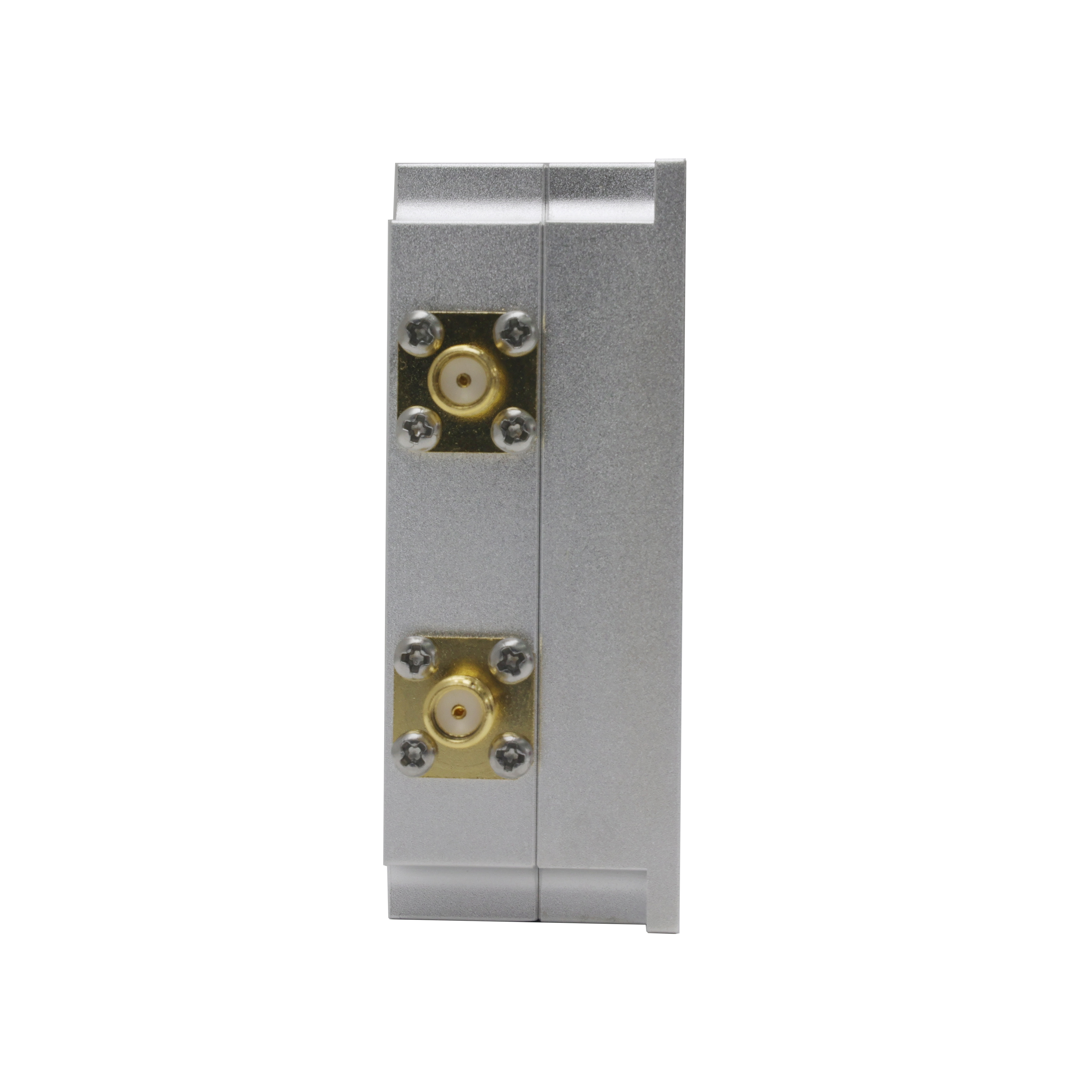

M2001 SDR UAV Detection Module
A high-performance passive detection module based on SDR architecture, designed for drone signal detection and identification. It supports 100MHz–6000MHz wideband scanning, detecting consumer drones (DJI/Autel), DIY FPV, WiFi drones, and excels at DIY FPV detection. Capable of DJI protocol and standard RID analysis, it features a compact design with standardized interfaces for easy integration.
Category:
Key words:
Signal uav detector module
Please submit a message first
Operation mechanism | SDR radio detection technology |
| Spectrum range | 100MHz~6000MHz |
| Key bands | 300MHz~1.2GHz / 2.4GHz / 5.2GHz / 5.8GHz |
Detectable drones | Consumer models (DJI, Autel) / DIY FPV drones / WiFi-based UAVs |
Detection capabilities | Supports detection of conventional UAVs and WiFi drones, DJI DroneID decryption, Remote ID acquisition/analysis, as well as FPV flight control and video transmission signal monitoring. |
Response time | < 3s |
Communication interface | RJ-45 |
| Operating Voltage | DC 9-30V |
| Power consumption | < 10W |
Size | 70 * 140 * 20mm (without interfaces) |
| Weight | 300±10g |
Operation temperature | -30℃ ~ +55℃ |
| Storage Temperature | -40℃~+55℃ |
