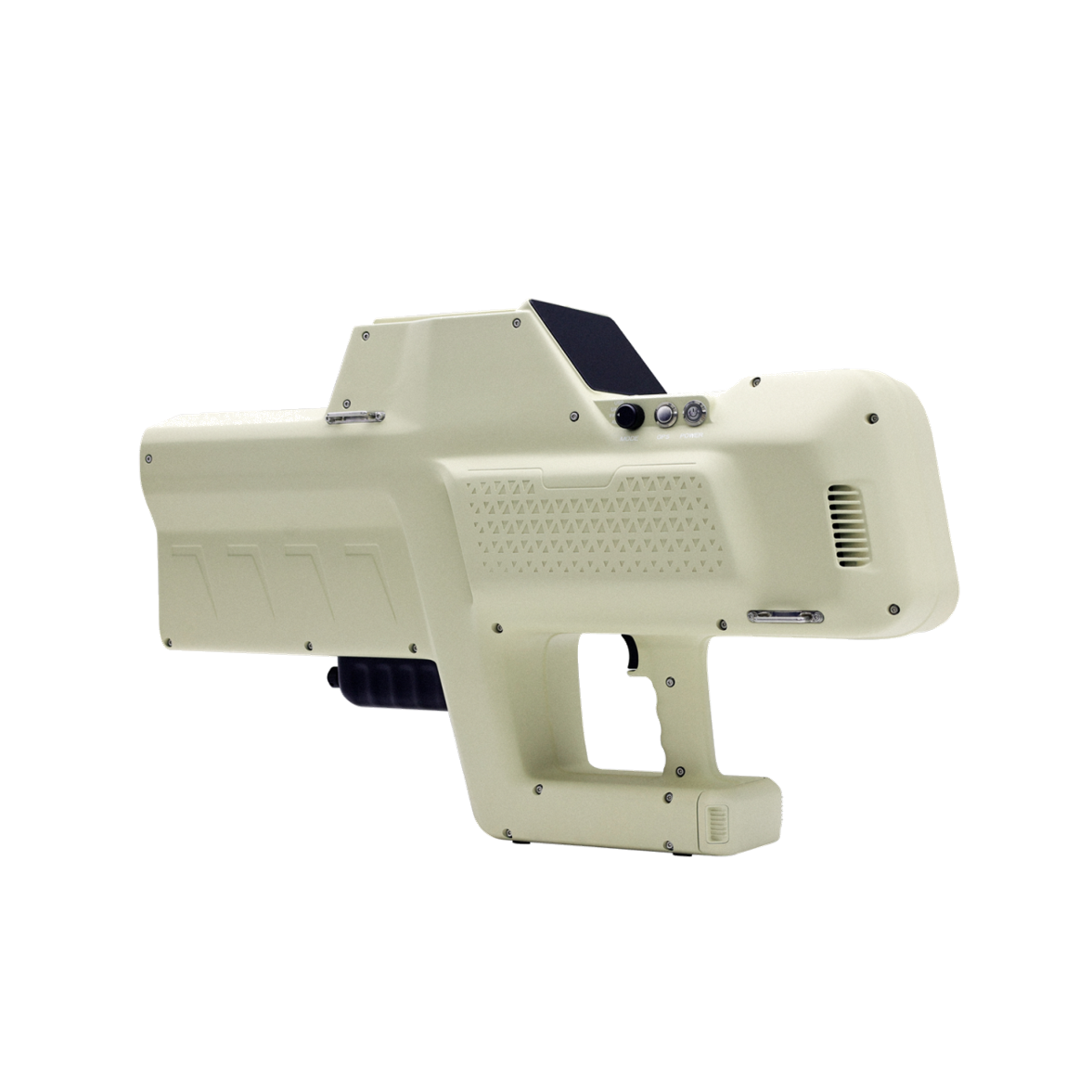

AT-620 Portable Counter-UAV Equipment
Compact handheld design with no external attachments for easy single-soldier carry. This detect-jam equipment offers 3km omnidirectional detection and 2km directional jamming, effectively countering DIY FPV and conventional drones. Its 360°detection/direction-finding/tracking is paired with SDR jamming technology and assisted targeting for precision strikes - forcing drones to crash, hover, land, or return.
Category:
Key words:
Handheld Counter-UAV Equipment
Signal uav jammer module
Portable C-UAV Equipment
Please submit a message first
Compact handheld design with no external attachments for easy single-soldier carry. This detect-jam equipment offers 3km omnidirectional detection and 2km directional jamming, effectively countering DIY FPV and conventional drones. Its 360°detection/direction-finding/tracking is paired with SDR jamming technology and assisted targeting for precision strikes - forcing drones to crash, hover, land, or return.
| Detection Unit | Detection Band | 100MHz~ 6000MHz |
Detection Signal Types | UAV Data/Video transmission Signal/ UAV Remote Control Signal/ UAV Navigation Signal | |
Detection Models | DIY FPV Drones （ELRS/TBS Crossfire and other protocols） Conventional Drones (DJI/ Autel/ Parrot, etc) Wi-Fi Based Drones, etc | |
Detection Direction | 360° Omnidirectional | |
Detection Distance | ≥ 3KM（open environment）,0.5~1KM（Urban environment） | |
Direction Finding Accuracy | 10 °（Open environment） | |
| Jamming Unit | Jamming Mechanism | SDR （Software Defined Radio） |
Interference Frequency Band | 400MHz, 800~900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz | |
Jamming Direction | Directional Jamming (beamwidth ≥30 °) | |
Jamming Distance | ≥2 km （Jamming Ratio 2:1）DJI Mini4 Pro ≥1 km （Jamming Ratio 1:1）DIY FPV drones (ELRS/ TBS Crossfire) | |
Response Time | ＜ 5s | |
| Main Unit | Information Display | 5 inch |
Operation Time | ≥ 30min （full power transmission） | |
Size | 650 x 400 x 190 mm | |
Weight | ≤ 8 Kg | |
IP Rate | IP54 | |
Operation Temperature | -30℃~+55℃ | |
Storage Temperature | -40℃~+70℃ |
Related Solution
SDR Counter-UAV Module Solutions
Drone Defense Solutions for Singles Soldiers
Drone Defense Solutions for Squads
Drone Defense Solutions for Armoured Vehicles
Production Display
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your inquiry and we will come back to you as soon as possible.
FAQ
Why AWP?
AWP is one of China's largest C-UAS solution providers. As a high-tech company, we boast a top-tier R&D team, state-of-the-art manufacturing and testing facilities, and customer-focused service.
Why SDR?
Based on SDR architecture, algorithm upgrades are performed via software, eliminating the need for hardware replacement, This economical approach ensures long-term protection for your investment.
Why AWP SDR?
AWP's SDR employs a digital modulation interference source, effectively disrupting various types of UAVs, with exceptional performance against FPV drones. AWP is pioneering the era of algorithm-based counter-UAV systems.
Would your company be capable of undertaking OEM and ODM projects?
Yes. Our highly skilled R&D and manufacturing team brings extensive expertise and experience, enabling us to expertly manage customized OEM and ODM projects.
