AT-616 Handheld UAV Detector

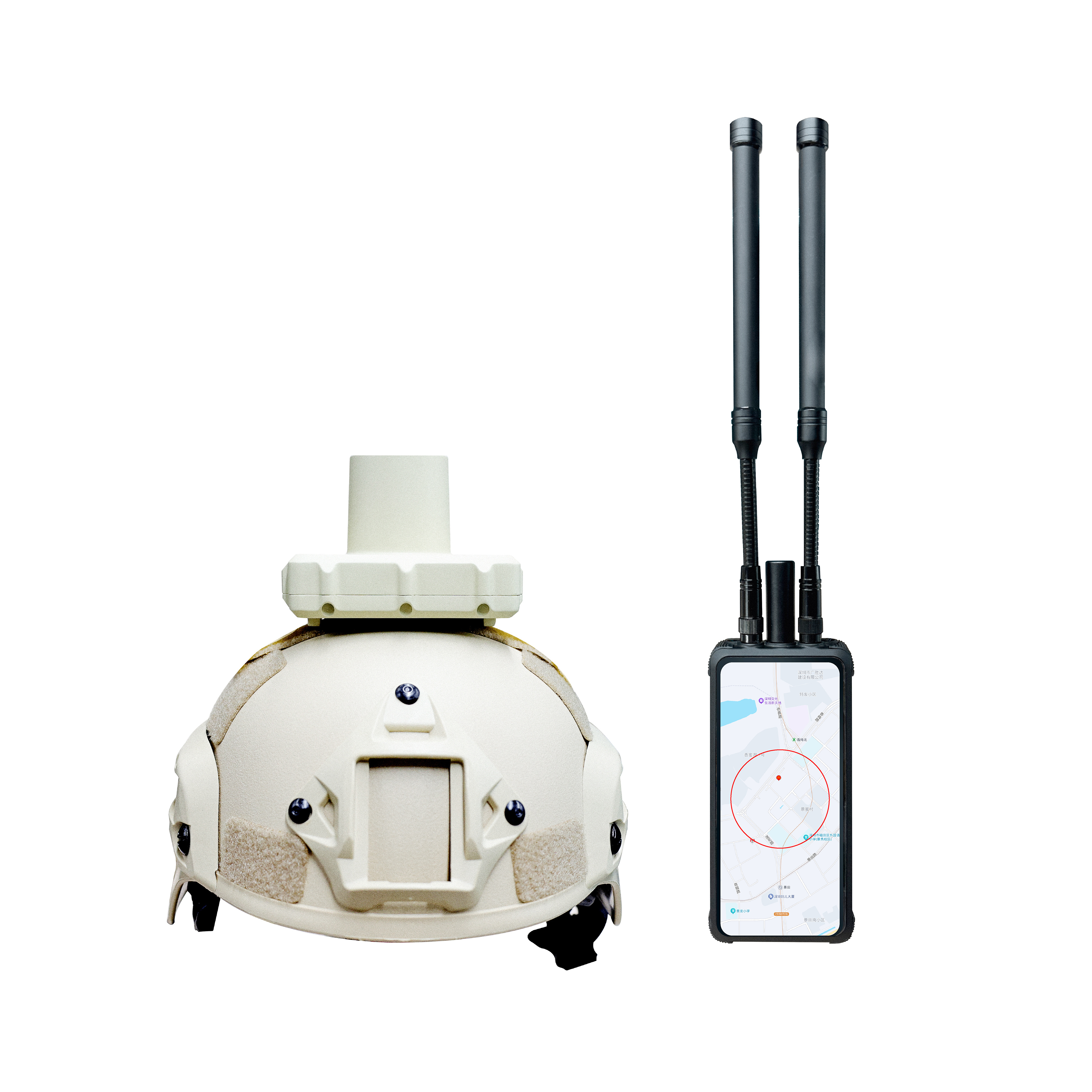

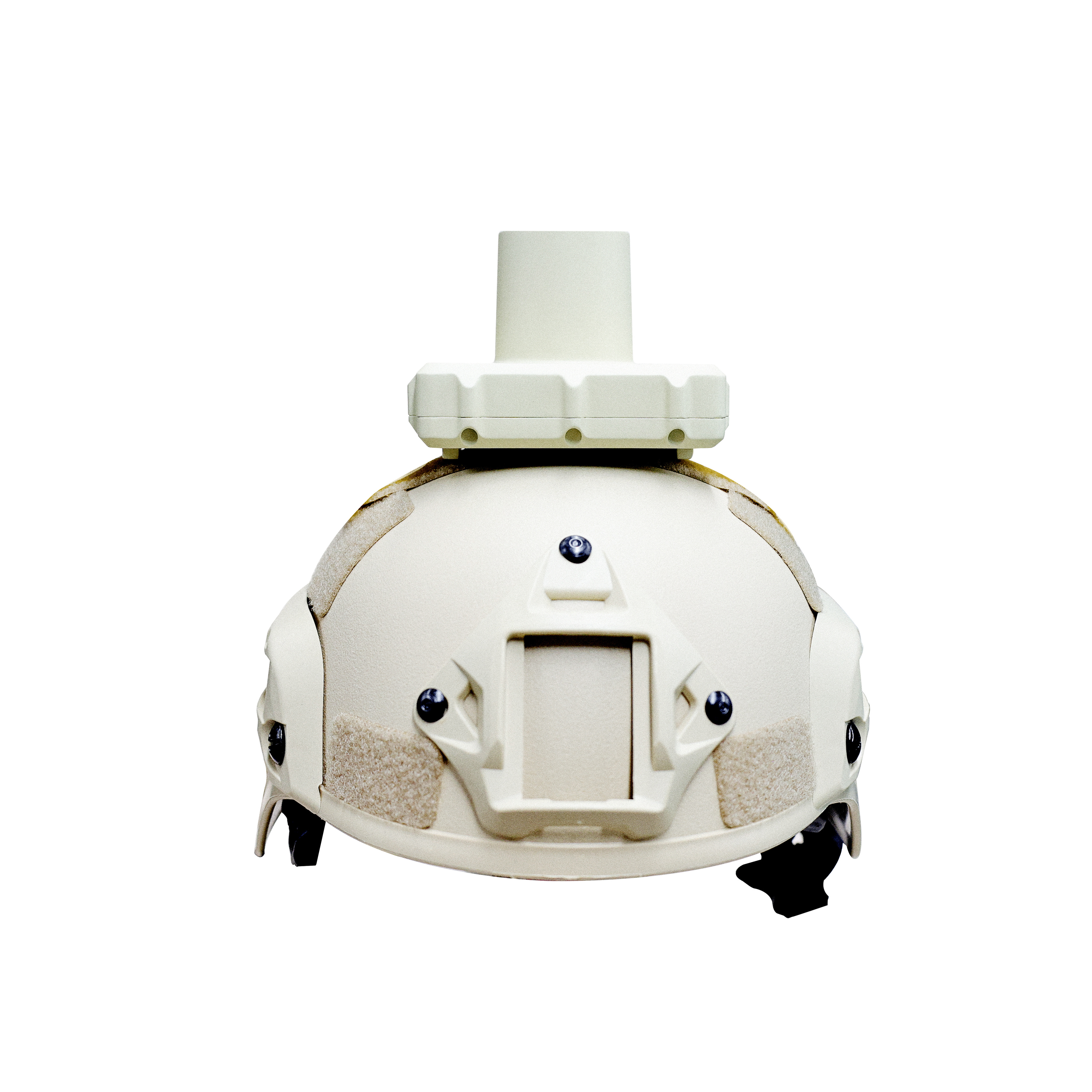

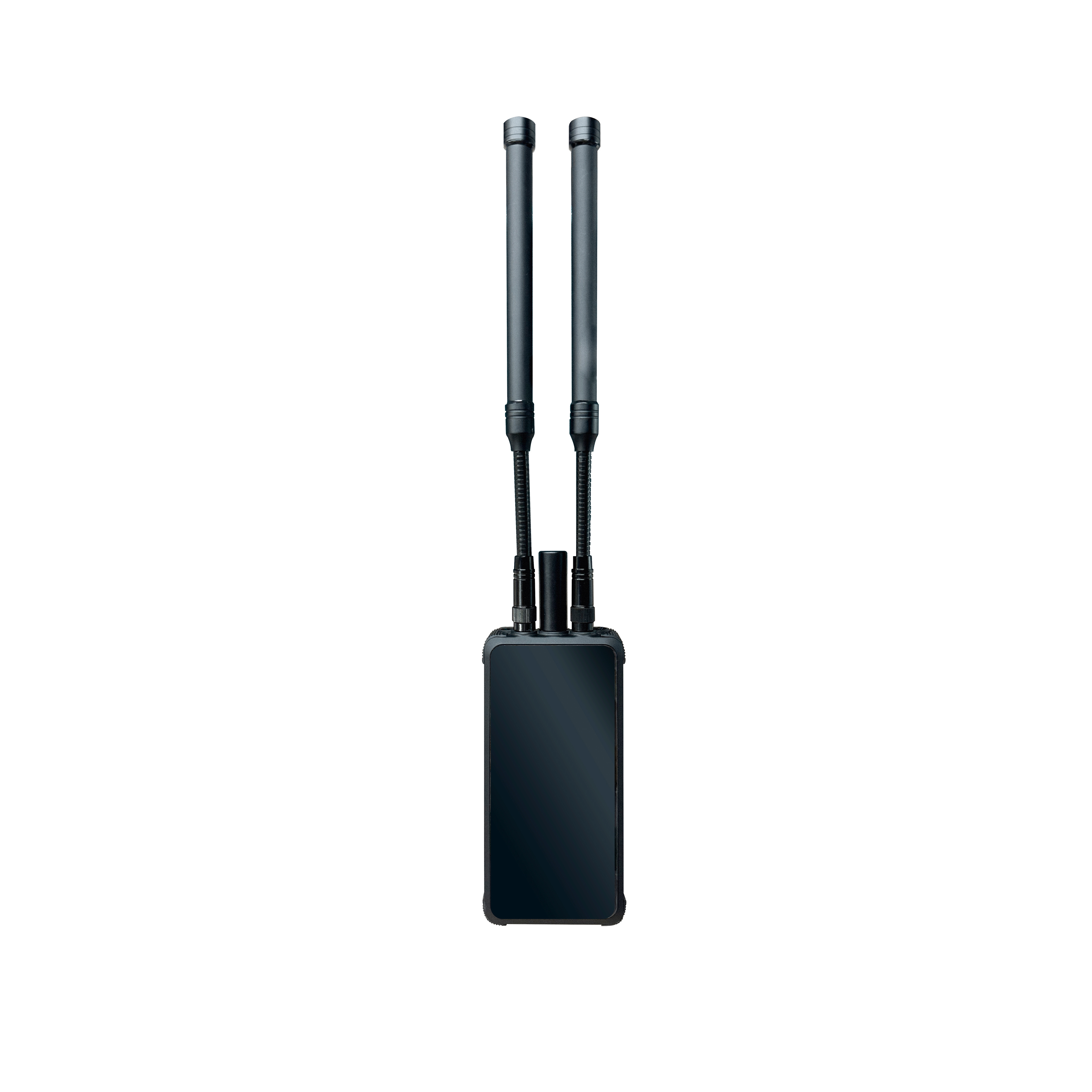

Designed for individual combat operations, the detector utilizes passive detection technology to provide 360o real-time monitoring, identification, and alerting for both DIY FPV drones and conventional UAVs. Equipped with high-precision phase-comparison direction finding, a single set can determine drone bearings. Its modular design consists of a handheld detection unit with 6-inch touchscreen (displaying target details, operator location, offline maps, and trajectory replay) and a helmet-mounted direction-finding module, ensuring optimal battlefield adaptability. Ideal for military operations, border patrols, and critical site protection.
Category:
Key words:
Handheld Counter-UAV Equipment
Portable C-UAV Equipment
Signal uav detector module
Please submit a message first
Designed for individual combat operations, the detector utilizes passive detection technology to provide 360o real-time monitoring, identification, and alerting for both DIY FPV drones and conventional UAVs. Equipped with high-precision phase-comparison direction finding, a single set can determine drone bearings. Its modular design consists of a handheld detection unit with 6-inch touchscreen (displaying target details, operator location, offline maps, and trajectory replay) and a helmet-mounted direction-finding module, ensuring optimal battlefield adaptability. Ideal for military operations, border patrols, and critical site protection.
supports simultaneous charging
and operation, effectively
enabling prolonged outdoor
operation.
counter-UAV devices or rear
units to direct precision strikes.
| Detection Unit | Detection band | 300MHz~6000MHz |
| Detection models | DIY FPV drones ( ELRS/TBS Crossfire and other protocols ) / Conventional drones ( DJI / Autel, etc. ) / Wi-Fi-based drones, etc. | |
| Detection data | For DJI O3 & RID-compliant drones: Model, serial number, frequency, signal strength, GPS coordinates distance, direction, speed, altitude, operator location, etc. For Autel/DIY FPV/WiFi drones: Drone type, frequency, signal strength, direction, etc. | |
| Detection range* | ≥ 3km ( open environment ), ≥ 1km ( urban environment ) | |
| Direction-finding Unit | Direction-finding frequency band | 5.15-5.95GHz |
| Direction-finding direction | 360° omnidirectional | |
| Multi-target detection | ≥15 drones ( priority-sorted by signal strength ) | |
| Direction-finding accuracy | < 10° | |
| Whole Machine | Display ( Optional ) | 6.5-inch touch LCD screen |
| API integration | Support | |
| External interfaces | USB-C ETH / RS232 WiFi / BT | |
| Power supply | Replaceable lithium battery, supports operating while charging | |
| Single battery life* | ≥ 4h | |
| Size | Handheld host: 1908830mm ( without antennas ) Direction-finding unit: 11311390mm | |
| Weight | Handheld host: ≤580g ( without antennas ) Direction-finding unit: ≤450g | |
| Protection level | IP65 | |
| Working temperature | -30℃~55℃ |
