AT-610 EWALL

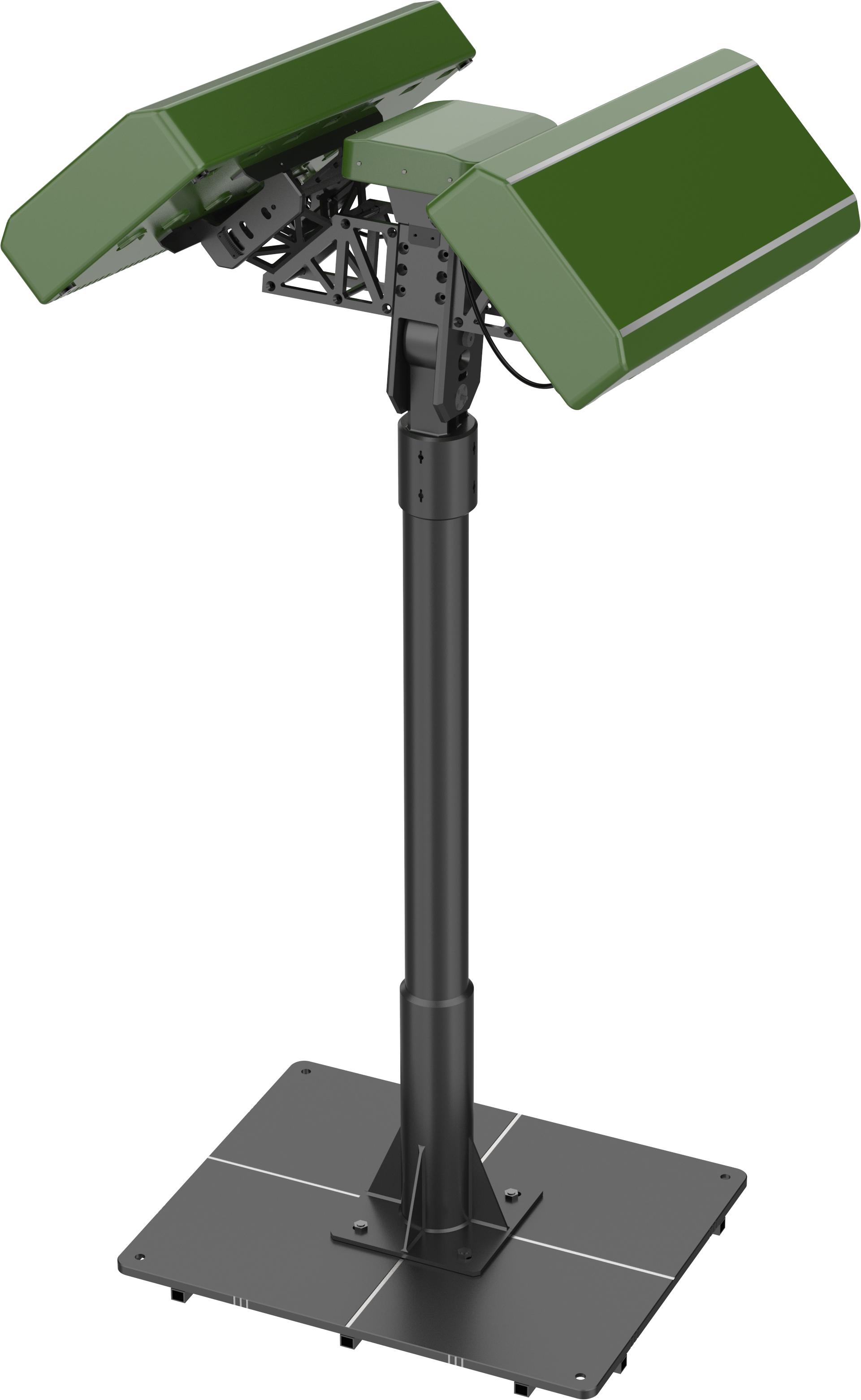

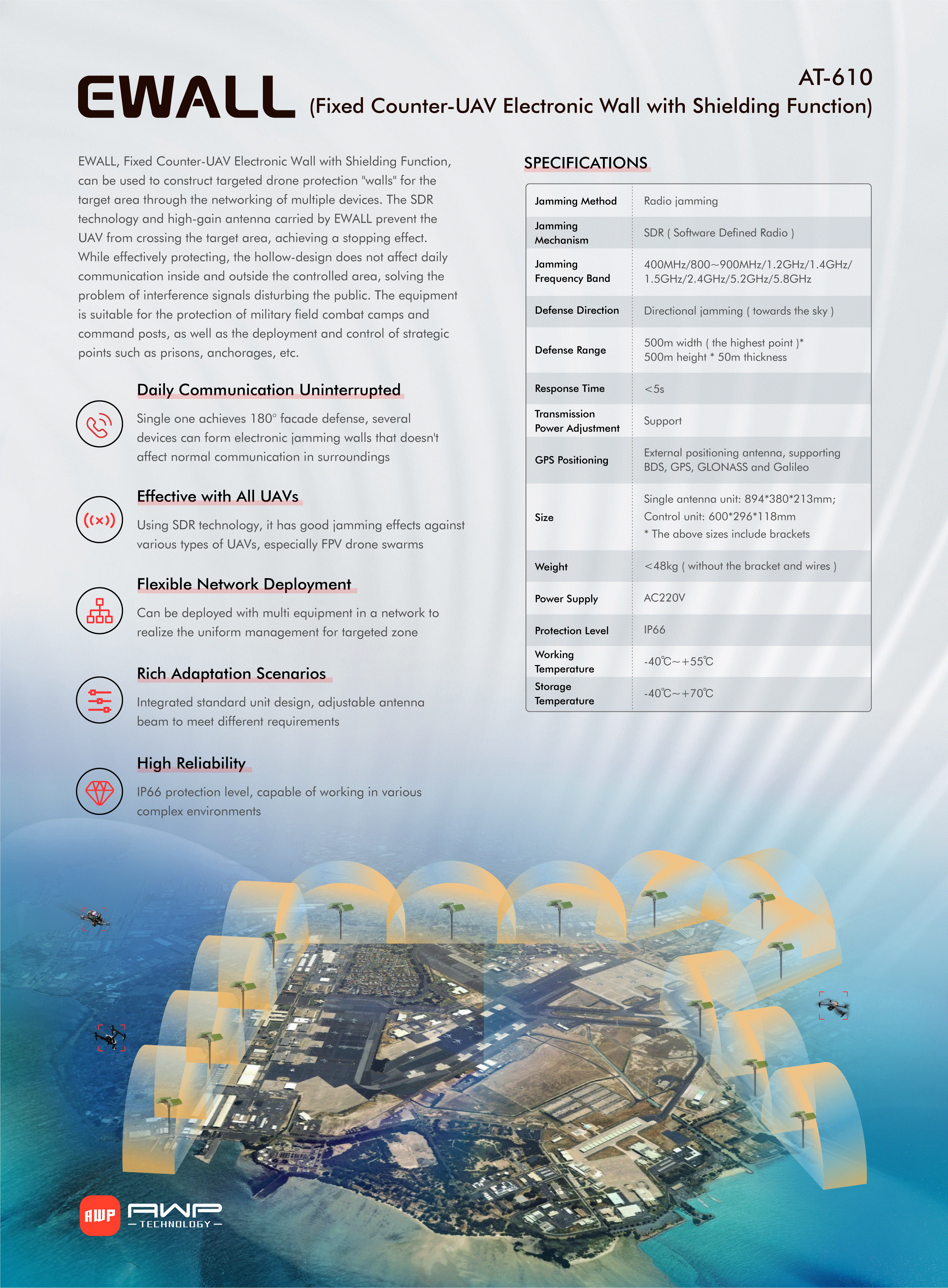

EWALL, Fixed Counter-UAV Electronic Wall with Shielding Function,can be used to construct targeted drone protection "walls" for the target area through the networking of multiple devices. The SDR technology and high-gain antenna carried by EWALL prevent the UAV from crossing the target area, achieving a stopping effect.
While effectively protecting, the hollow-design does not affect daily communication inside and outside the controlled area, solving the problem of interference signals disturbing the public. The equipment is suitable for the protection of military field combat camps and command posts, as well as the deployment and control of strategic points such as prisons, anchorages, etc.
Category:
Key words:
Fixed Counter-UAV Electronic Wall with Shielding Function
Please submit a message first
|
Jamming Method |
Radio jamming |
|
Jamming Mechanism |
SDR ( Software Defined Radio ) |
|
Jamming Frequency Band |
80〇〜900MHz/1.2GHz/l .4GHz/l .5GHz/2.4GHz/5.2GHz/5.8GHz |
|
Defense Direction |
Directional jamming (towards the sky ) |
|
Defense Range |
500m width (the highest point )* 500m height * 50m thickness |
|
Response Time |
<5s |
|
Transmis이on Power Adjustment |
Support |
|
GPS Positioning |
External positioning antenna, supporting BDS, GPS, GLONASS and Galileo |
|
Size |
Single antenna unit: 1030*380*146mm;Control unit: 355*236*88mm(not include bracket) |
|
Weight |
<45kg ( without the bracket and wires ) |
|
Power Supply |
AC220V |
|
Protection Level |
IP66 |
|
Working Temperature |
-30°C 〜+ 55°C |
|
Storage Temperature |
-40°C 〜+ 70°C |
Related Solution
SDR Counter-UAV Module Solutions
Drone Defense Solutions for Singles Soldiers
Drone Defense Solutions for Squads
Drone Defense Solutions for Armoured Vehicles
Production Display
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your inquiry and we will come back to you as soon as possible.
FAQ
Why AWP?
AWP is one of China's largest C-UAS solution providers. As a high-tech company, we boast a top-tier R&D team, state-of-the-art manufacturing and testing facilities, and customer-focused service.
Why SDR?
Based on SDR architecture, algorithm upgrades are performed via software, eliminating the need for hardware replacement, This economical approach ensures long-term protection for your investment.
Why AWP SDR?
AWP's SDR employs a digital modulation interference source, effectively disrupting various types of UAVs, with exceptional performance against FPV drones. AWP is pioneering the era of algorithm-based counter-UAV systems.
