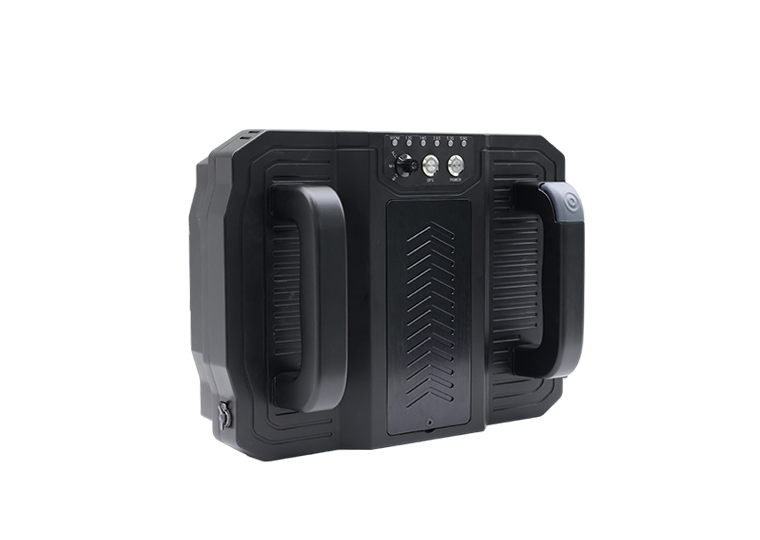

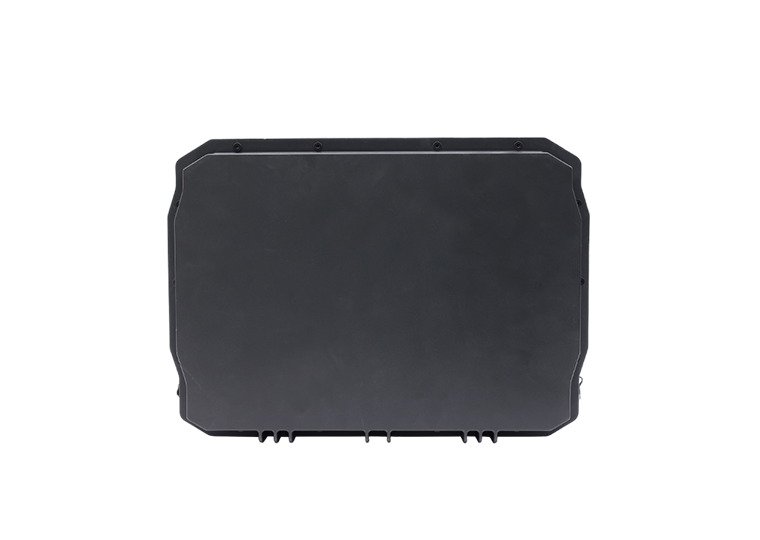

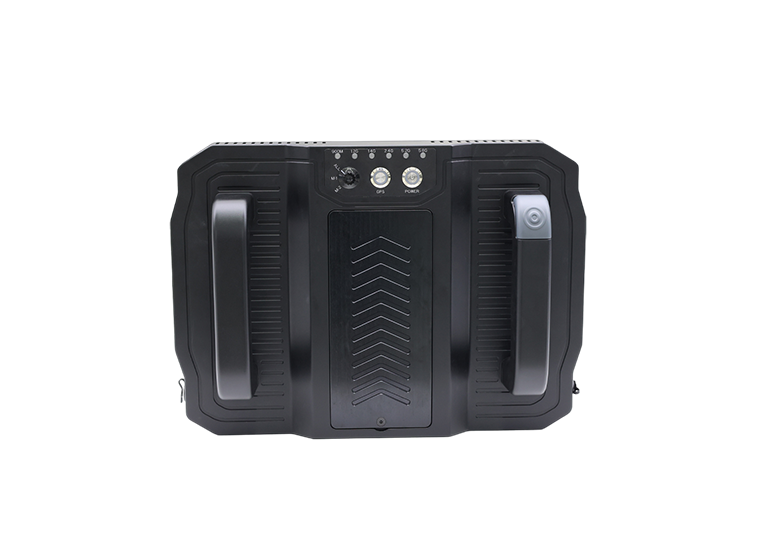

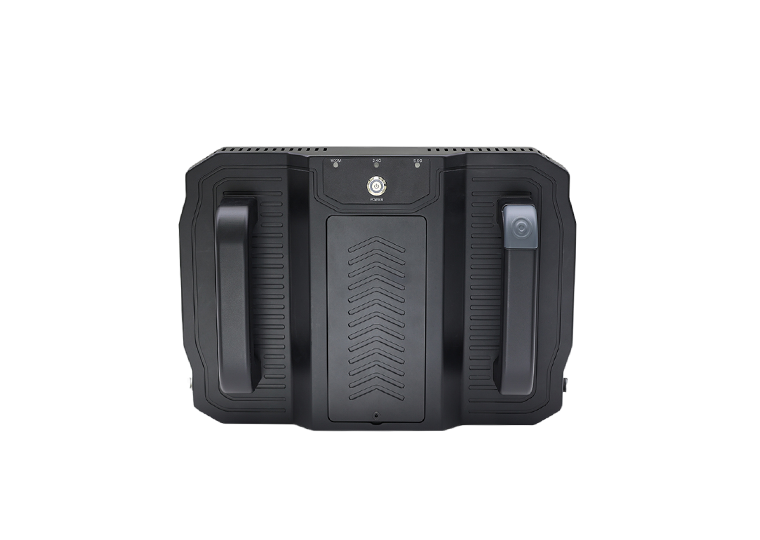

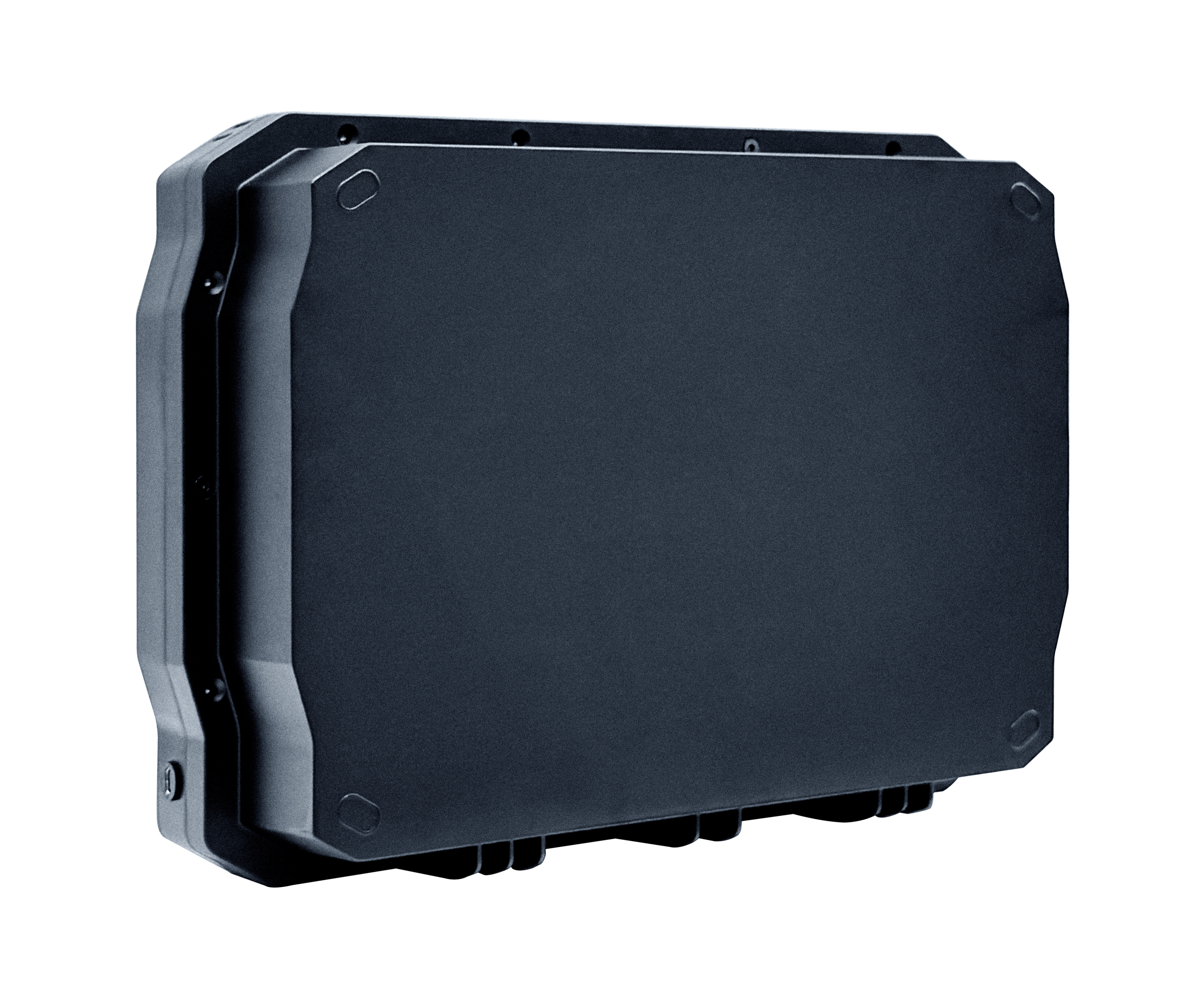

AT-619B Portable Counter-UAV Shield
Based on SDR jamming technology. Portable Counter-UAV Shield supports different frequency-band configurations and can effectively block UAV signals such as data/image transmission, remote control, navigation, etc., especially for various FPV drones with good countermeasures. Overall flexible and portable, it adopts an IP54 level ultra durable shell, which is heat-resistant and corrosion-resistant. It can be quickly deployed in various scenarios such as counter-terrorism, important activities security protection, and base protection. Its appearance is concealed and not easy to cause panic.
Category:
Key words:
Portable Counter UAV Equipment
Please submit a message first
jamming codes to effectively
block FPV control signals.
| Model | AT-619A | AT-619B |
|---|---|---|
| Jamming mechanism | SDR ( Software Defined Radio ) | SDR ( Software Defined Radio ) |
| Jamming frequency bands | 800~900MHz / 2.4GHz / 5.3~5.9GHz | 800~900MHz / 1.2GHz / 1.4GHz / 1.5GHz / 2.4GHz / 5.2GHz / 5.8GHz |
| Jamming angle* | 60° horizontal, 30° elevation | 60° horizontal, 30° elevation |
| Jamming distance* | ≥ 1km ( j/c ratio = 1:1 ), DIY FPV ( ELRS/TBS Crossfire protocol ) | ≥ 1km (j/c ratio = 1:1 ), DIY FPV ( ELRS/TBS Crossfire protocol ) ≥ 1km ( j/c ratio = 2:1 ), DJI Mini4 Pro / Mavic 3 |
| Total transmission power | < 90W | < 140W |
| Size | 380270155mm | 380270155mm |
| Weight | 4.5kg±0.1kg ( host with battery pack ) | 5.6kg±0.1kg ( host with battery pack ) |
Power supply/ charging | Lithium battery pack powered; Support battery pack replacement, and whole machine charging | Lithium battery pack powered; Support battery pack replacement, and whole machine charging |
| Single battery life* | > 30min ( full power transmission ) ≥ 3h ( standby mode ) | > 15min ( full power transmission ) ≥ 3h ( standby mode ) |
| Power consumption | < 250W ( full power transmission ) < 15W ( standby mode ) | < 340W ( full power transmission ) < 35W ( standby mode ) |
| Protection level | IP54 | IP54 |
| Working temperature | -30℃~+45℃ | -30℃~+45℃ |
| Working humidity | ≤ 93% RH, no condensation water | ≤ 93% RH, no condensation water |
